Dimensions

1380*630*1230 mm

Ground clearance

155 mm

Max. forward speed

12 km/h

Max. backward speed

5 km/h

Turning radius

1.8 m

Braking distance

2.5 m

Range per charge

25 km

Climbing capability

12°

Weight Capacity

135 kgs

Motor rated power

24V 400W ( with brush )

Brake

4N.M electro-magnetic brake (wanner brand )

Controller

24V 70A ( PG )

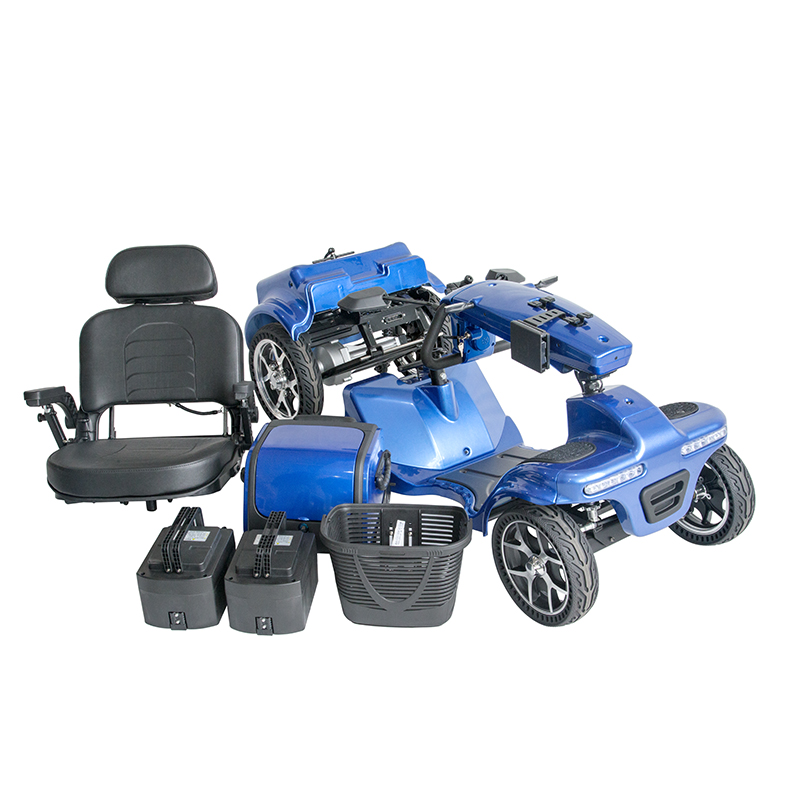

Battery

12V 26AH *2 lead acid

Charger

24V 4A

Charge time

6-8h

Front Tyres

11.4 inch (290*80 mm), solid honeycome, with AL rim

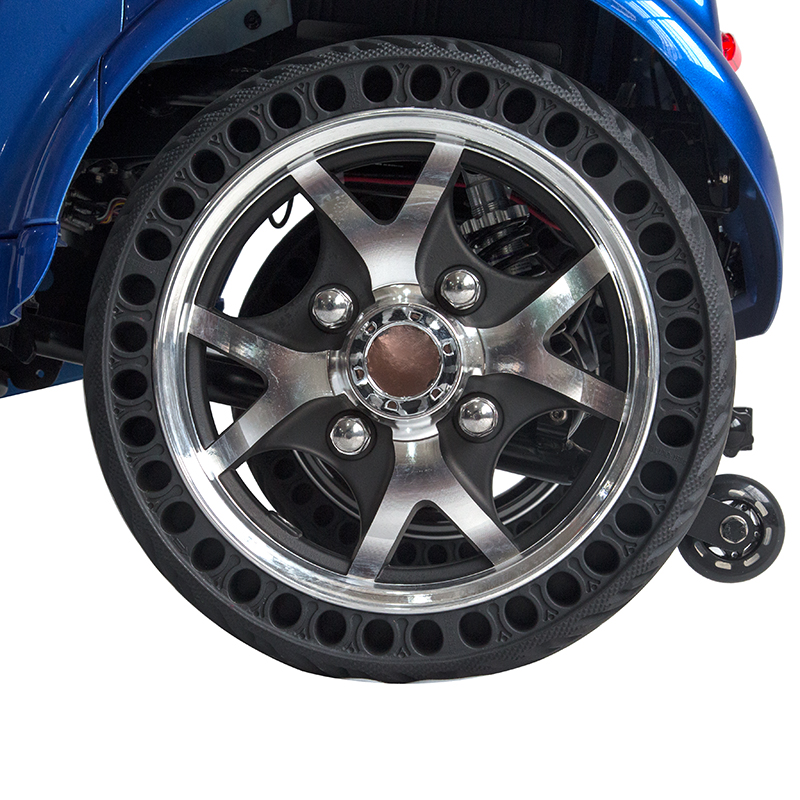

Rear Tyres

14 inch (360*75 mm ), solid honeycome, with AL rim

Gross Weight

123 kgs（in honeycomb carton）

Net Weight （ including batteries )

109 kgs

Batteries Weight

18.6 kgs

Packing size Body

1440*700*832 mm

Qty/20'

24 pcs

Qty/40'HQ

72 pcs
